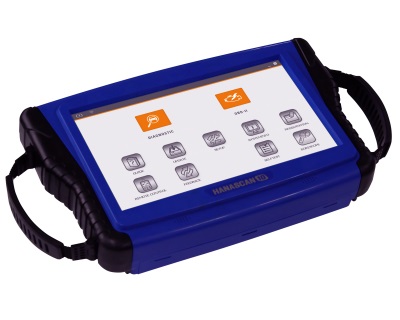

    Hanascan 10

  • · Intel Atom N270 sith 1.6 GHz
  • · Windows 7 Embedded
  • · 2GB DDR2 (400/533) SO-DIMM RAM
  • · Large memory (SSD 128GB)
  • · Borescope (optional) with Video Recording
  • · Li-ion 5200mAh Rechargeable Battery
  • · 10.1" TFT Color LCD (1024x600) Touch Screen
  • · Bluetooth 2.1 + EDR & Wi-Fi (802.11 b,g,n)
  • · Intel 82574L 10/100/1000 Mbit LAN Port x 1EA
  • · Up to QXGA (2048x1536) VIDEO OUT Port x 1EA
  • · USB 2.0 x 2EA
>>Features
  • Remote Control
  • Feedback System
  • Self Test
  • Monitoring
  • All Communication Protocols
  • Key Coding Available
  • OEM Level Diagnostic Software
  • Intuitive & Simple User Interface
  • Wireless Communication
>>Specification
Main CPU Module Processor Intel Atom N270 sith 1.6 GHz
RAM 2GB, DDR2, SO-DIMM
Cache 52KB L2 Cache
OS Windows 7 Embedded
Storage SSD Capacity Option (128GB, 64GB, 32GB), S-ATA2
CF Capacity Option (32GB, 16GB, 8GB)
Interface USB 2.0 2EA, HOST
LAN Port 1EA, Ethemet : 10/100/1000 Mbit, Intel 82574L
Wireless Bluetooth 2.1 + EDR
Wi-Fi (802.11b, g, n)
LCD 10.1"(1024 x 600), Touch Screen
VIDEO OUT Port 1EA, Up to QXGA(2048 x 1536)
SOUND Buzzer 1EA
Speaker 2EA, Inetl Hign Definition Audio, AC97
Power ADAPTOR 12Vdc/3A
Battery Li-ion, 5200mAh
Management ACPI with S5 Eco
Scanner Operating
Voltage(Frorn vehicle)		 7 ~ 32Vdc
Protocol OBD-I Supported
OBD-II ISO9141-2
ISO14230(KWP)
J1850(PWM & VPW)
CAN 2.0A/2.0B (Hign Speed, Middle Speed, Single Wire)
Borescope Special Function Snapshot
Video Recoding
Cable Diameter Φ3.9(Available for Diesel Engine)
>>OBDIIKitOBDII Kit(Basic)
  • Carrying Case
  • User Manual
  • USB Cable
  • Main Data Link Cable
  • Vehicle Battery Cable
  • Cigarette Power
    Cable
  • DC 12V Power
    Cable
  • Self Tester
  • OBD II Connector
>>Asian KitOption Ⅰ
  • Toyota 17 Pin
    Semi-circular
  • Toyota 18 Pin
    Rectangular
  • Mitsubishi
    12 + 16 Dual
  • Mitsubishi
    Hyundal 12 Pin
  • Honda 3 Pin & 2 Pin
  • Nissan / Samsung
    4 Pin
  • Mazda 17 Pin
  • Subaru 9 Pin
  • Kia 20 Pin
  • Kia 6 Pin
  • Ssangyong 14 Pin
  • Ssangyong 20 Pin
  • GM-Daewoo 12 Pin
>>Full KitOption Ⅱ
  • BMW 20 Pin
  • VW / Audi 2x2 Pin
  • Mercedes Benz
    38 Pin
  • Mercedes Benz
    4 Pin
  • GM-Opel 10 Pin
  • Ford ECC-IV
  • Australian Ford
    20 Pin
  • Australian
    Holden 6 Pin
>>Full KitOption Parts
  • Bore Scope
